WIRE FLATTINING AND SPECIAL PROFILES

Square Flat Wire

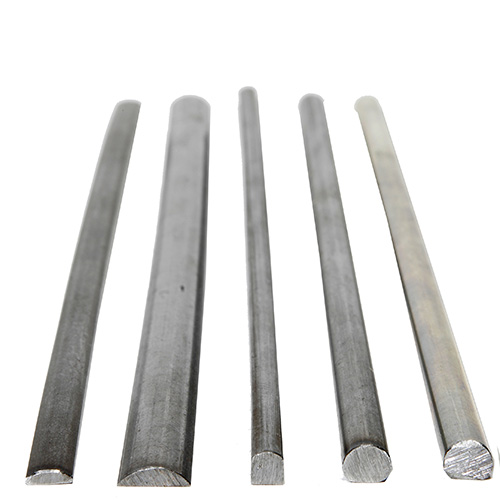

In facilities of Güneş Tel known as having various production lines, lots of cold formed and flatted steel wires like square flat wire, flat wire, half round wire (D profile), diagonal flat wire, triangular profile, hexagonal allen wrench, pentagonal profile, knurled flat wire, etc. can also be produced.
These products can be cut to various lengths ranging from 50 mm to 4000 mm depending on request. These types of products are used in manufacturing of furniture and decoration items, stands, various metal accessories, ironing boards, automobile keys and allen wrenches.

  1. MATERIAL:

    Low carbon and High Carbon Steel Wires, Stainless Steel Wires
  2. QUALITY:

    Bright, annealed according to DIN EN 10016, 10216, 10217, 17223, 10025, 10263-2, 10263-3, 10263-4
  3. WIRE DIAMETER Ø:

    2.50*2.50 mm to 10.00*10.00 mm
  4. LENGHT RANGE:

    100 mm- 3000 mm
  5. TOLERANCES:

    The strenght and width tolerance depends on the desired dimension and the corner format, specification at customer's options or by agreement
  6. CORNERS:

    Naturally rolled corners, rounded corners,according to drawing sharp corners, specification of the corner radius
  7. TENSILE STRENGHT:

    Depending on material the delivery is possible in different strenght ranges
  8. SURFACE:

    Depending on the material the following surfaces are available: Bright, coated, phosphated, zinc coated, galvanized…
  9. PACKING:

    The delivery format can be chosen between "coils" and "cut lenght bars"
  10. PACKING WEIGHT :

    25 - 1000 kg

  11. APPLICATIONS:

    Accessories for lighting products, households articles, otomotive industry…etc.

Packaging and Presentation For All Flat Wires

We can satisfy all your requirements concerning the presentation and packaging of your wire for supply to you, ensuring it is fully protected in transit and perfectly suited to your handling and processing needs. We supply wire in coils or cut lengths.

Coils

From 50kgs up to 2 tonnes each Wooden, steel or plastic reels The dimensions of our coils (in mm) are as follows

NOMINAL
COIL WEIGHT (Kg)
d D f
50 300 530 90
100-150 460 680 90-140
200-250 500 840 180-250
500-1000 500 960-1020 300-410
1000-2000 550 1250 360-410

Coils can be packaged as required:

Wrapped in hessian, polypropylene or shrink wrapped. Palletised - for handling purposes the maximum weight per pallet would usually be 1000kgs. In stillages or in wooden or cardboard boxes. For volume production we are always happy to discuss returnable packaging.Cut Lengths Wire can be supplied in straight, cut lengths from 200mm up to 4000mm.

Cut lengths can be packaged as required:

In bundles. In wooden or cardboard boxes.

Key Features

High quality surface finish Square or radiussed corners DIN standard tolerances, or above if required.

If you have a requirement for flat wire please contact our Sales Team who will be pleased to look at your enquiry - please contact us or submit an online enquiry. Please let us know your presentation or packaging requirements and we will be happy to discuss these with you.

QUALITIES

  • UNE-EN 10016-C5D2-C15D2-C18D2-C42D2

  • NF A35 -051 FM-6 FM-10 FM-18 FM-42

  • DIN 1652 Low carbon steels

  • DIN 17100 General structural steels

  • DIN 1651 Free cutting steels

  • DIN 17118 Steels for cold formed products

  • SAE 1005-1010-1018-1043 Structural and building steels
